DesignSeries00083.pngPick up Redline

Command

Path

Pick Up Redline

        Text > Redlines

        Context menu

Once the change or correction indicated by the redline has been resolved, one or more redlines can be “picked up” or changed to a closed state.

To pick up a redline:

  1. Select the redline.

  2. Select the command.

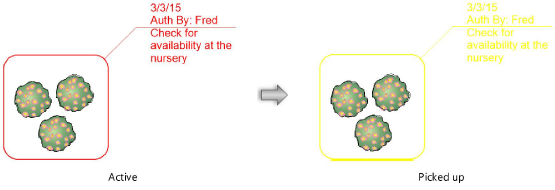

The status of all selected redline objects changes to closed. The redline color changes from red to yellow, and the pick-up date is set.


Redlines can also be picked up by selecting one or more redline objects and selecting Picked Up from the Object Info palette.

~~~~~~~~~~~~~~~~~~~~~~~~~

Error/Revision Management Using Redlines
