Creating a Lectern

After the stage and stairs have been added, a lectern can be quickly configured and placed. When placed on the stage, the lectern elevation is automatically adjusted to the top of the stage.

To add a lectern:

1. Select the command.

The Create Lectern dialog box opens.

Click to show/hide the parameters.

Parameter	Description
Choose Lectern	Select one of the lecterns from the list; these are configured with default attributes and can be inserted as is. Alternatively, select a lectern shape to use as the basis for a new lectern symbol with customized attributes.
Custom Attributes	Customizes the selected lectern’s default attributes, creating a new hybrid lectern symbol
New Symbol Name	Provide a name for the new lectern symbol; the new symbol is added to the file’s resources
Class	To control appearance, select a class from the list of classes present in the drawing, or create a new class. Leave the lectern in the None class to set the remaining attributes from the dialog box.
Fill Color	Set the fill color for the lectern
Pen Color	Set the pen color for the lectern
Texture	Opens the Resource Selector; double-click a resource to select it

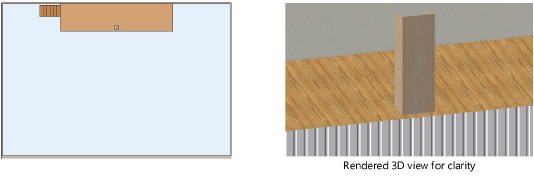

2. Click once in the drawing to set the lectern position. Click again to set the lectern rotation.

~~~~~~~~~~~~~~~~~~~~~~~~~
