Screw threads

2. Click to place the object in the drawing, and click again to set the rotation.

The first time you use the tool in a file, a properties dialog box opens. Set the default properties. The properties can be edited from the Object Info palette.

Parameter	Description
Diameter	Enter the thread diameter
Overall Length	Specify the overall length of the screw thread
Thread Length	Specify the length of the threads only
Thread Pitch	Indicate the thread pitch
Fillet Radius	Specify the fillet radius

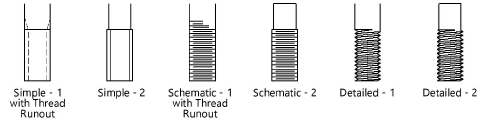

Thread Style	Select one of the thread display styles. For Style 1, the shoulder diameter is equal to the thread diameter; for Style 2, the shoulder diameter is equal to the pitch diameter.
Thread Bottom	Select flat or chamfered
Show Threads As	For Simple thread styles, select dashed lines or solid lines
Show Thread Runout	For Simple-1 and Schematic-1 styles, select to display the thread runout
Show Center Line	Select to draw the screw threads with a center line
