Screws

Lag screws

Mode

Tool

Tool set

Lag Screw

Detailing

The Lag Screw tool and Lag Screw - 3D tool share the same position on the tool set. Click and hold the mouse on the visible tool to open the Pop-out tools list and select the desired tool.

To insert a lag screw:

1. Click the tool and mode.

2. Click to place the object in the drawing, and click again to set the rotation.

The first time you use the tool in a file, a properties dialog box opens. Set the default properties. The properties can be edited from the Object Info palette.

Click to show/hide the parameters.

~~~~~~~~~~~~~~~~~~~~~~~~~

Inserting fastener objects using the Fastener tool

Sheet metal screws

Thumb screws

Wood screws

Was this page helpful?

Parameter	Description

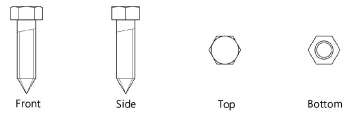

View (2D only)	Select the 2D view
Series	Select inch or metric to display the appropriate nominal sizes
Head Type	Select the lag screw head type
Nominal Size	Select an inch or metric nominal size
Length	Enter the length under the screw head
Show Threads	Select to create the lag screw with threads
Show Center Line (2D only)	Select to draw the 2D lag screw with center line(s)
