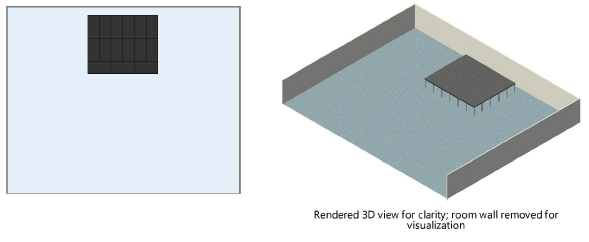

Stage Height

Specifies the overall stage height

Standard Stage Deck Width/Depth

Specifies the dimensions of a rectangular stage

Structure

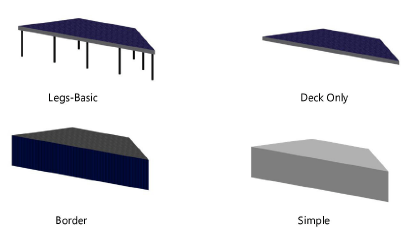

Select the type of stage construction; stage plug objects are shown as an example.

Top Thickness

For Legs-Basic and Deck Only stages, sets the thickness of the deck.

Trim Height

For Legs-Basic and Deck Only stages, sets the height of the trim around the stage

Leg Diameter

For Legs-Basic, sets the diameter of the leg supports

Leg Profile

For Legs-Basic, select a round, square, or octagonal shape for the legs

Leg Reference Spacing

For Legs-Basic, sets an approximate spacing value for the legs; the exact spacing is determined automatically by evenly dividing the length of the deck

Minimize Leg Count

When multiple stages fill an area, removes unnecessary legs from Legs-Basic structures that are supported by adjacent stages

Add Casters

For Legs-Basic, adds casters to the legs to create a rolling platform

Object Class

To control appearance and visibility, select a class from the list of classes present in the drawing, or create a new class

Purpose/Set Cart ID/Note

Enter information about the stage which can be placed on the drawing with the Text Options from the Object Info palette of each individual stage object (does not affect the stage appearance)

Fill Color

Sets the fill color for the stage

Pen Color

Sets the pen color for the stage

3D Options

Specifies the appearance of applicable deck elements in 3D views. The 3D Options dialog box opens.

For each available portion of the stage, either select the color from the Color list, or select Custom Texture and then click the current custom texture to open the Resource Selector; double-click a resource to select it. The Object Info palette displays the color or texture selections in the relevant section.

The appearance of Simple stage decks is set from the Attributes palette.
