Creating parking along a pathCreating parking along a pathTool |
Tool set |
Parking Along Path
|
Site Planning |
To create parking along a path:
1. Click the tool.

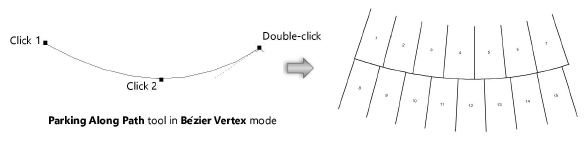

2. Click to begin drawing the parking polyline path; click to set each polyline vertex. Click again back at the start point (or press K) to complete a closed polyline, or double-click to create an open polyline. For more information on polylines, see Polyline tool.
The first time you use the tool in a file, a properties dialog box opens. Set the default properties. The properties can be edited from the Object Info palette.
3. The parking spaces are automatically created along the polyline path.
Once created, the parking along path object can be edited by selecting the parking object; then select Modify > Edit Parking Along Path and reshape the parking area polyline with the Reshape tool; click Exit Path to return to the drawing.
Parking along path parameters can be edited from the Object Info palette.
Click
to show/hide the parameters.
|
Click here for a video tip about this topic (internet access required). |
~~~~~~~~~~~~~~~~~~~~~~~~~
