Analyzing 3D objects

The Analysis tool provides proximity information for 3D objects including NURBS curves and surfaces, solids, and subdivision objects, and intersection and curvature information for NURBS curves and surfaces.

Determining solid object proximity

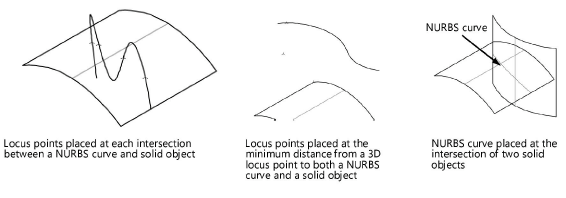

In Proximity mode, the Analysis tool places a 3D locus at the minimum distance or intersection between two solid objects, and a 3D locus and NURBS curve or surface. The tool places a NURBS curve at the intersection of two solids.

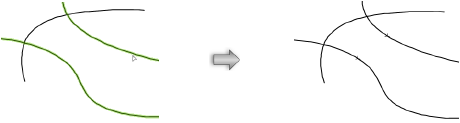

2. Click on a NURBS curve, NURBS surface, solid object, subdivision object, or 3D locus, and then click on another solid object.

A 3D locus is placed on each NURBS curve at the closest minimum distance or intersecting points between the two items, or a NURBS curve is placed at the intersection of two solids.

Determining NURBS curvature, tangents, and normals

In Interrogation mode, the Analysis tool provides curvature parameters for NURBS curves and NURBS surfaces. It also shows curvature circles and tangent and normal curves interactively, for any point on the existing curve or surface. Optionally, you can add these curves to the drawing; the tool can also place two 3D loci for each curvature circle: one locus where the circle meets the NURBS curve or surface, and one at the center of the circle.

Analyzing NURBS curves

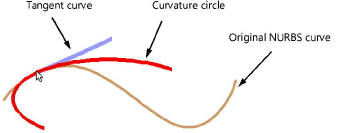

2. Click on the NURBS curve of interest, and then move the cursor along the curve to display the curvature circle (in red) and tangent curve (in blue) at the cursor position.

3. Click the curve to obtain curve properties at a specific location along the curve. The Curve Properties dialog box opens, displaying curvature parameters for that location.

Option	Description
Create Curvature Circle	Adds the NURBS curve displayed in red to the drawing
Locus at center of curvature	Adds a 3D locus at the point where the curvature circle meets the NURBS curve, and another locus at the center of the circle
Create Tangent Curve	Add the NURBS curve displayed in blue to the drawing
Length	Specifies the length of the tangent curve

4. To add a curvature circle or tangent curve to the drawing, select the appropriate options. If you select multiple items, they are created as a group.

Analyzing NURBS surfaces

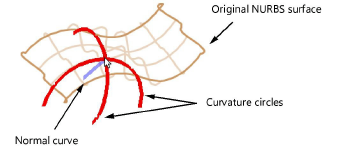

2. Click on the NURBS surface of interest and move the cursor along the surface to display the curvature circles (in red) and normal curve (in blue) at the cursor position.

3. Click again to obtain surface properties at a specific location along the surface. The Surface Properties dialog box opens, displaying curvature parameters for that location.

Option	Description
Create Curvature Circles	Adds the NURBS curves displaying in red to the drawing
Loci at centers of curvature	Adds a 3D locus at the point where the curvature circles meet the NURBS surface, and another locus at the center of each circle
Create Normal Curve	Add the NURBS curve displaying in blue to the drawing
Length	Specifies the length of the normal curve

4. To add curvature circles or a normal curve to the drawing, select the appropriate options. If you select multiple items, they are created as a group.

Mode	Description
Proximity	Determines the minimum distance between solid objects and 3D loci, or the intersection between solids
Interrogation	Interactively determines the curvature of NURBS curves and surfaces and displays curvature parameters
