Constrain concentric
|
Tool |
Tool set |
|
Constrain Concentric
|
Dims/Notes |
Multiple geometric constraint tools share the same position on the tool set. Click and hold the mouse on the visible tool to open the Pop-out tools list and select the desired tool.
Constrain circles and arcs concentrically. If a circle or arc is moved, the other constrained circle or arc moves so that their centers remain aligned. The circles or arcs do not need to be concentric when you place the constraint; the first object moves so that its center aligns to the second object’s center.
To constrain two circles or arcs concentrically:
Click the tool.

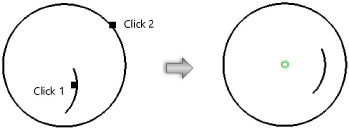

Click the first and then the second object to be constrained.
A green concentric constraint is drawn at the center of the two objects.
