Constrain radius
|
Tool |
Tool set |
|
Constrain Radius
|
Dims/Notes |
Multiple dimensional constraint tools share the same position on the tool set. Click and hold the mouse on the visible tool to open the Pop-out tools list and select the desired tool.
Constrain the radius of a single arc or circle. This prevents an arc or circle from being accidentally resized.
To constrain the radius of an arc or circle:
Click the tool.
Click the arc or circle to be constrained.

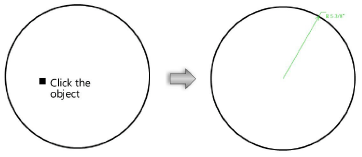

A green radius constraint is drawn on the object.
The Constrain Radius tool does not work on quarter arcs.
