Constrain vertical distance
|
Tool |
Tool set |
|
Constrain Vertical Distance
|
Dims/Notes |
Multiple dimensional constraint tools share the same position on the tool set. Click and hold the mouse on the visible tool to open the Pop-out tools list and select the desired tool.
Constrain the vertical distance of an edge of an object, line segment, or between two points. If an object resize is attempted, the constraint prevents the operation, preserving the original vertical distance. When the constraint is on two different objects, if one object is modified, the other constrained object moves to remain at the same constrained vertical distance.
To constrain the vertical distance of an edge of an object or line segment:
Click the tool.
Click the object to be constrained.
A green vertical distance constraint is drawn on the object.

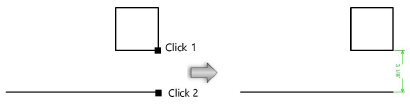

To constrain the vertical distance between two points:
Click the tool.
Click the first point to be constrained.
Click the second point to be constrained.
A green vertical distance constraint is drawn between the two points.
