Constrain concentric
|
Tool |
Workspace: Tool set |
|
Constrain Concentric
|
Fundamentals, Architect, Spotlight: Dims/Notes Landmark: Basic |
Multiple constraint tools share the same position on the tool set. Click and hold the mouse on the visible tool to open the Pop-out tools list and select the desired tool.

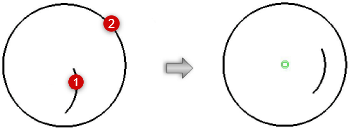

Constrain circles and arcs concentrically. If a circle or arc is moved, the other constrained circle or arc moves so that their centers remain aligned. If the objects aren't concentric when you place the constraint, the first object moves so that its center aligns to the second object’s center.
To constrain two circles or arcs concentrically:
Click the tool.
Click an object to constrain.
Click a second object to create the constraint.
A green concentric constraint is drawn at the center of the two objects.
