Cam Diagrams

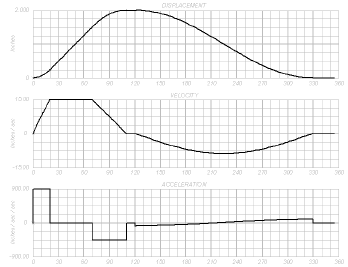

Diagrams of the cam follower displacement, velocity and acceleration are created automatically from the current cam properties.

The diagrams exist on the Diagrams layer.

To display or update the diagrams:

1. Select the Draw Cam Diagrams command from the appropriate menu:

●    Architect workspace: AEC > Machine Design > Draw Cam Diagrams

●    Landmark workspace: Landmark > Machine Design > Draw Cam Diagrams

●    Spotlight workspace: Spotlight > Machine Design > Draw Cam Diagrams

2. The cam diagrams are displayed. To return to the cam, select Cam from the Layers list on the View bar.

~~~~~~~~~~~~~~~~~~~~~~~~~
