U-bolts

The U-Bolt tool and U-Bolt - 3D tool share the same position on the tool set. Click and hold the mouse on the visible tool to open the Pop-out Tools list and select the desired tool.

The first time you use the tool in a file, a properties dialog box opens. Set the default properties. The properties can be edited from the Object Info palette.

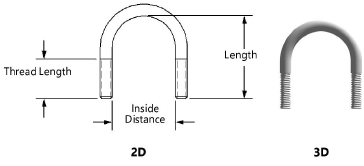

Parameter	Description
Size	Specify the U-bolt size in diameter/threads per inch (imperial) or diameter/thread pitch (metric)
Inside Distance	Specify the inside distance between the ends of the U-bolt
Length	Specify the length from the inner portion of the “U” to the end of the legs
Thread Length	Specify the thread length
Thread Style (2D only)	Select the thread style; see Fastener Object Thread Styles
View (2D only)	Select the 2D view
Show Center Line (2D only)	Select to draw the U-bolt with center line(s)
Place Locus at Center	Select to draw the U-bolt with a center locus
Show Threads (3D only)	Select to create the U-bolt with threads
