DesignSeries00062.pngRivets

Large Rivets

Mode

Tool

Tool set

Modes for The Symbol Insertion Tool

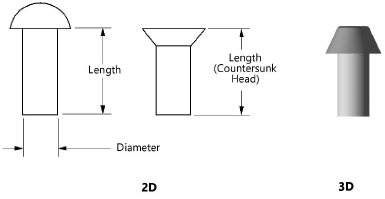

Large Rivet


Fasteners

Multiple rivet tools share the same position on the tool set. Click and hold the mouse on the visible tool to open the Pop-out Tools list and select the desired tool.

To insert a large rivet:

  1. Click the tool and mode.

  2. Click to place the object in the drawing, and click again to set the rotation.

The first time you use the tool in a file, a properties dialog box opens. Set the default properties. The properties can be edited from the Object Info palette.

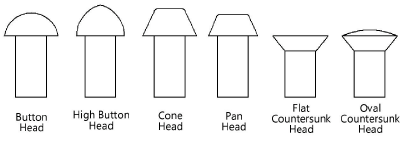

Click to show/hide the parameters.

~~~~~~~~~~~~~~~~~~~~~~~~~

Small Rivets

Rivets (DIN)

Tubular Rivets
