Tubular Rivets

Multiple rivet tools share the same position on the tool set. Click and hold the mouse on the visible tool to open the Pop-out Tools list and select the desired tool.

The first time you use the tool in a file, a properties dialog box opens. Set the default properties. The properties can be edited from the Object Info palette.

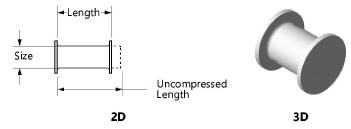

Parameter	Description
Size	Select a size in millimeters
Length	For a custom length value, deselect Use Standard Length Increments and enter the length
Form	Select one of the rivet types
View (2D only)	Select the 2D view
Show Uncompressed Length (2D only)	Select to display the uncompressed rivet length
Use Standard Length Increments	Select to automatically adjust the length to the nearest increment based on DIN standard sizes; deselect to enter a custom length value
Show Center Line (2D only)	Select to draw the rivet with center line(s)
