Small rivets

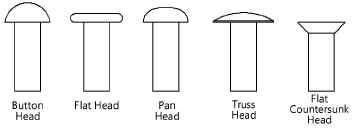

Multiple rivet tools share the same position on the tool set. Click and hold the mouse on the visible tool to open the Pop-out tools list and select the desired tool.

To insert a small rivet:

1.      Click the tool and mode.

2.      Click to place the object in the drawing, and click again to set the rotation.

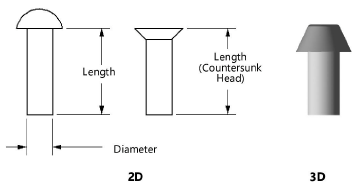

The first time you use the tool in a file, a properties dialog box opens. Set the default properties. The properties can be edited from the Object Info palette.

Click to show/hide the parameters.

~~~~~~~~~~~~~~~~~~~~~~~~~
