Automatically creating record formats from a database table

Record formats can be created from database tables. The imported tables are automatically linked to the new record formats.

Parameter	Description
Database Table Name	Displays the name of the selected database
New Record Format Name	Specifies the name of the new record format to create; the suggested name is based on the database table name, but it can be changed
New Record Format Fields connection	Lists the database columns and the corresponding record field and type; database fields with a check mark in the left column become record fields in the Vectorworks file
Selection	Specifies the parameters and link type for the selected record field to be created; the Record Field Name, Record Field Type, and Database Link Type are suggested based on the column information, but they can be changed

3.Select the columns from the database that will become record fields in the new record format by placing a check mark in the left column. For each selected column, specify the record field name, type, and connection type. For more information on connection types, see Record format database connection.

Each selected table column in the database table becomes a record field in the new record format. The record fields are automatically connected to the database according to the connection type specified.

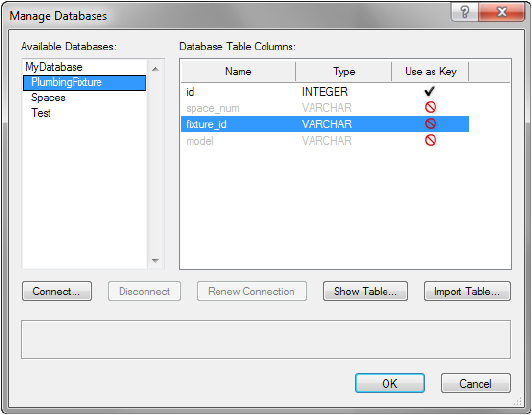

Command	Path
Manage Databases	Tools > Database
